TITANIUM RACE DRILLED MAGNETIC DRAIN BOLT M12X1.5X15

Original price was: $34.95.Current price is: $29.99.

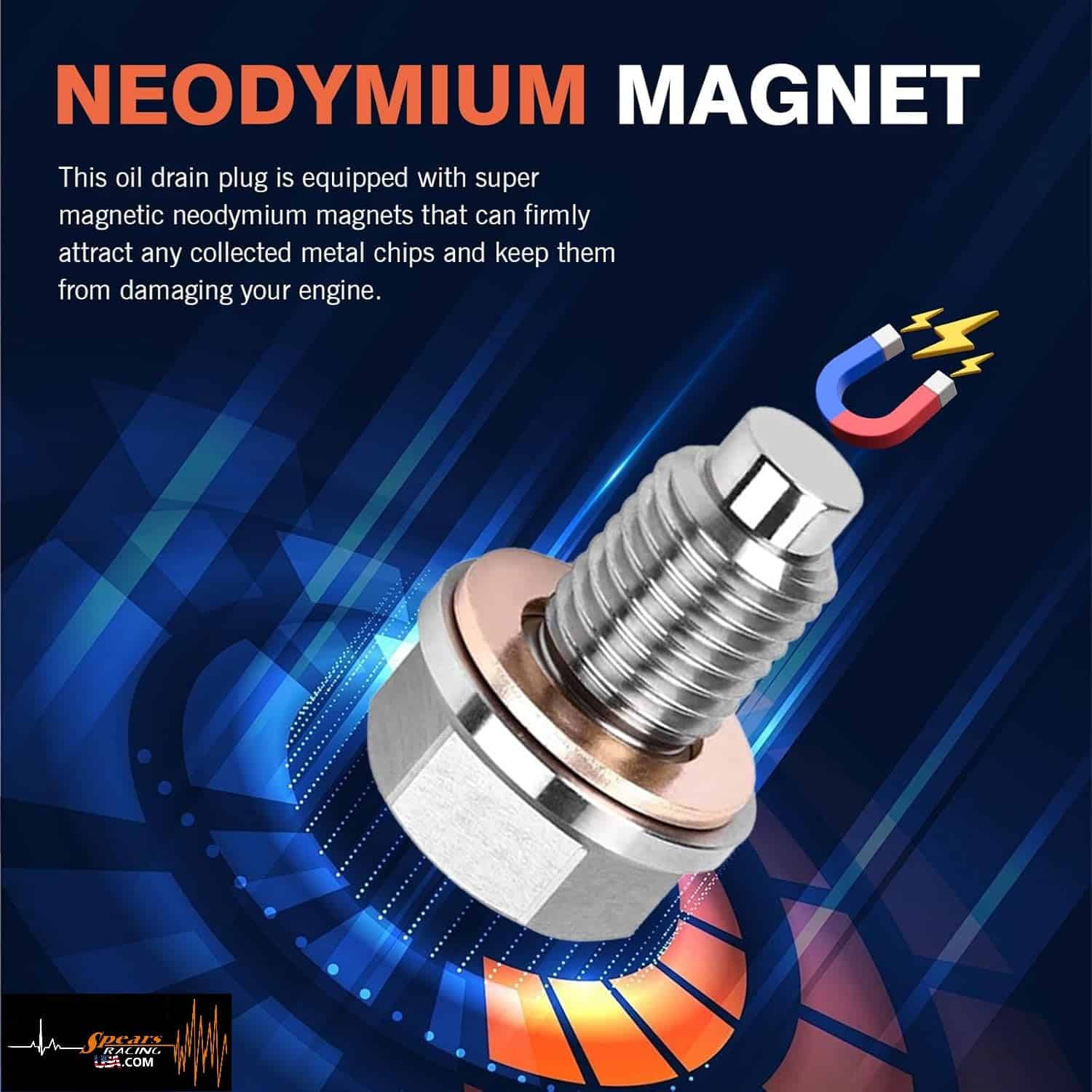

The Titanium race drilled magnetic drain bolt M12X1.5X15 is one of the best way to reduce the mass on any small race bike.The Magnetic Drain Bolt bolt has an Embedded HIGH TEMP NEODYMIUM MAGNETS  which holds metal engine shavings to keep your oil clean. Includes Aluminum crush washer for Proper Installation.

Lightweight Grade 5 Titanium
– Pre-Drilled for easily added safety wire
– Magnetic Insert to catch any passing debris

48 in stock

Description

Titanium race drilled magnetic drain bolt M12X1.5X15 is designed to the specifications set by Spears Racing. This is a must for any racer who is looking to cut their unsprung mass weight. This is the weight of the parts of the motorcycle that are between the suspension and the road surface.

The Titanium race drilled magnetic drain bolt M12X1.5X15 is one of the best way to reduce the mass on any small race bike, and it is a big improvement on your acceleration of your bike,just remember it takes a lot more energy to accelerate a larger mass (weight) at the same rate as it does to accelerate a smaller mass.
In a grounded vehicle with a suspension, the unsprung mass is the mass of the suspension, wheels or tracks, and other components directly connected to them, rather than supported by the suspension. Un-sprung weight is the weight of the parts of the motorcycle that are between the suspension and the road surface.So when you start to remove this weight,bike will not only be lighter but will respond faster.

Lightweight Grade 5 Titanium
– Pre-Drilled for easily added safety wire
– Magnetic Insert to catch any passing debris

Material: Titanium Grade 5
Product Type: Bolt
Head Style: Special – Hex Head
Thread Diameter: 12mm
Thread Pitch: 1.50mm
Thread Length: 15mm
Head Height: 8mm
Flange Diameter: 21mm
Length: 23mm
Socket Size: 17mm
Pack Quantity: 1 ( Includes one (1) drain bolt washer)

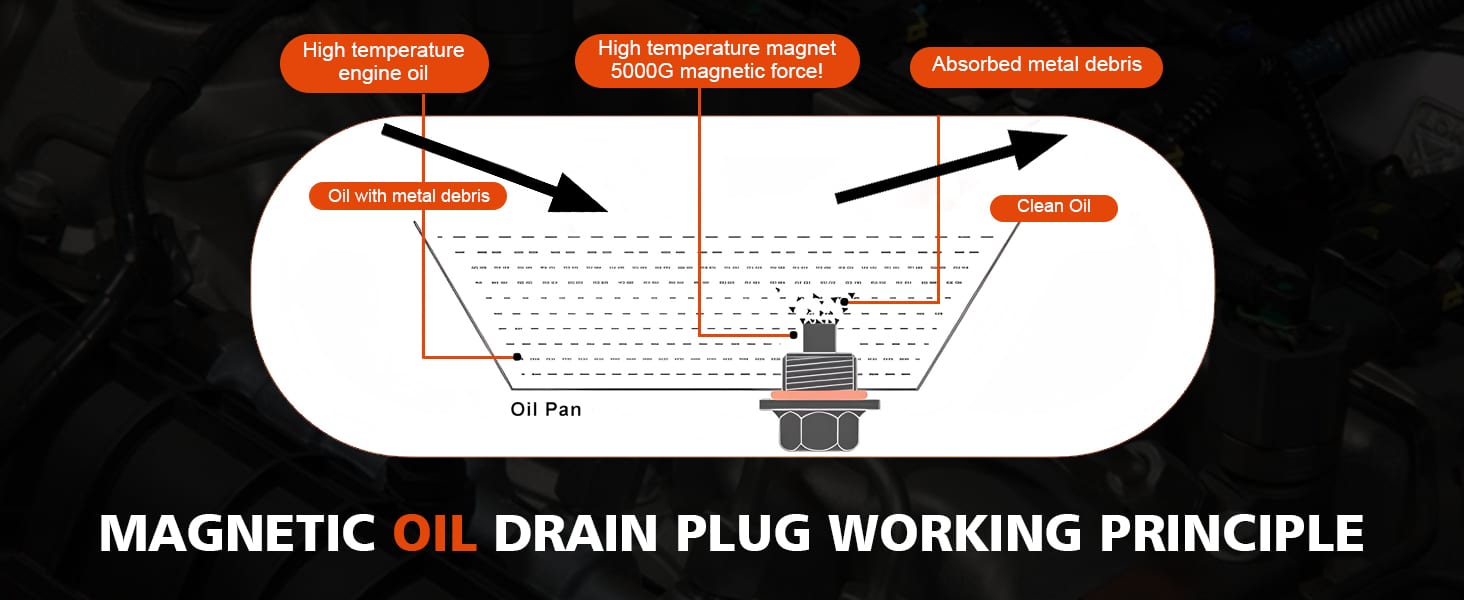

The Magnetic Drain Bolt bolt has an Embedded HIGH TEMP NEODYMIUM MAGNETS  which holds metal engine shavings to keep your oil clean. Includes Aluminum crush washer for Proper Installation.

Will fit the following Motorcycles:

Kawasaki Ninja 250
Kawasaki Ninja 300
Kawasaki Ninja 400
Kawasaki Ninja 500
Kawasaki ZX400rr
Yamaha R3



Spears Racing has been designing and making race products for decades, their continuous committed to excellence to advance as the industry changes. This commitment has resulted in more components specific to certain applications, proprietary products only manufactured for us. Each of these aspects has been put through stringent research and development stages to ensure that our product will exceed your standards.
