Yamaha YZF-R3 2015/Current Brembo Brake Caliper # 20516584/20516588 with Mounting Bracket

Brembo Caliper and Mount by meticulously selecting the materials used, Brembo can achieve ever higher standards in terms of technology and quality, which translate to superlative performance  and outstanding reliability and safety. These products make the benefits of Brembo’s extraordinary wealth of technical expertise available to owners who want to enhance the character and performance of their motorcycles with track-proven components.

$369.99$809.99

Description

Brembo Brake Caliper and Bracket for the Yamaha YZF-R3 is a special product that has been re-designed by Corbin Custom Design engineering staff to a perfect fitment and has an amazing appearance you have come to  expect to see on all of the Spears Racing products. This unit shown on a Yamaha YZF-R3 has the proper clearance for the current rotor. This caliper is the workhorse of the Brembo until the introduction of radial calipers. Mounted as oem caliper on your Kawasaki Ninja 400cc.

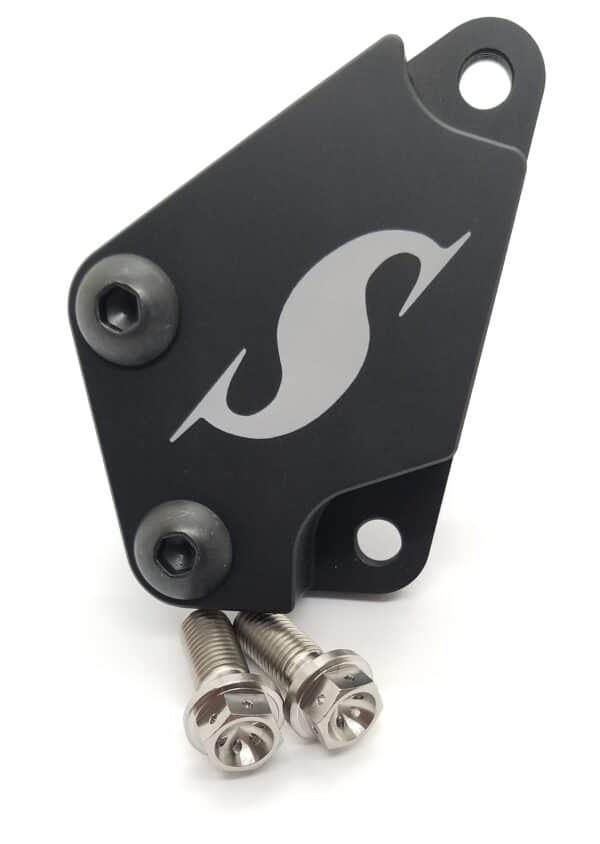

The special mount designed for the Yamaha YZF-R3 is made from Billet aluminum and is machined to fit and give you plenty of clearance to your Brake rotor, the mount come with 2 mounting bolts and you will use your stock OEM caliper bolts to mount this unit to your fork leg or use the Spears Racing Titanium drilled caliper bolts
Brembo has always contributed to the victories of the world’s greatest champions with braking systems boasting constantly evolving technology and innovation. With its unmatched racing experience and collection of victories, Brembo is the undisputed benchmark for the champions of the world’s most prestigious championships and the most discerning motorcyclists.
By meticulously selecting the materials used, Brembo can achieve ever higher standards in terms of technology and quality, which translate to superlative performance and outstanding reliability and safety. The technological innovations developed and implemented in the world’s major motorcycle championships are continuously transferred to the racing products range, which offer bike tuners technologically dedicated, highly advanced solutions.
These products make the benefits of Brembo’s extraordinary wealth of technical expertise available to owners who want to enhance the character and performance of their motorcycles with track-proven components.
For this application you will need to get a new Spears Racing Brake line

Brembo Brake Caliper and Bracket SPECS :

Piston: 2 x 30 / 2 x 34 mm, Mounting distance: 40mm,70 bar pressure capacity, Weight 880 grams,4,0 – 5,0 mm disk thickness cast, Tolerance for brake disc position: ± 0,7mm,Color: Gold or Black

AXIAL BRAKE CALIPER WITH PADS AND BRACKET FOR 310MM DISCS (OEM Stock Rotor Diameter)  Spears Bracket 185g/6.55oz.

*** Understand that every brake rotor is different between brands(aftermarket) you might need to shim the caliper to fit your current Rotor***



Items to go with the Brembo Brake Caliper



BREMBO RCS15 BRAKE MASTER CYLINDER

The Brembo RCS15 Master Cylinder is ideal for single caliper braking systems such as those found on 250-500cc Moto 3 bikes. It features a radial configuration that yields a dramatic increase in stopping power and brake feel over the stock axial master cylinders.

The Brembo RCS15 Brake Master Cylinder allows the rider to choose between more power or more precision to best complement their riding style, track/street conditions and other brake components. The unique design of the RCS system offers the flexibility to change the brake lever ratio at the turn of a screw. The 20mm setting provides a more reactive braking response and the 18mm setting allows for better feel and modulation. Additionally, the Brembo lever features an adjustable thumb screw that can be customized to fit a range of riders’ hands. In the event of a crash the outer portion of the lever folds up and away to avoid damage. The patented master cylinder is constructed of forged aluminum and then CNC machined down to remove any excess weight. All of its components, including the piston, seals and pushrod, are the same as those used in MotoGP and WSBK.

Features:
*Forged aluminum body
*Hard anodized finish
*Adjustable and folding aluminum lever
*15mm piston
*Lever ratio of 18mm and 20mm
*Weight: ~350 gr

*Mounts to most 22mm (⅞) diameter handlebars
*Includes universal brake light switch
*Brembo Brake Reservoir Kit available (sold separately)
*Brembo Remote Adjuster available (sold separately)
*Compatible with most OEM ABS brake systems
Note: For street use Brembo includes a brake like switch harness that will replace your stock harness (requires cutting and splicing of stock harness).



Brembo Reservoir Mounting Kit

Brembo Reservoir Mounting Kit PART NUMBER 110.A263.85 Reservoir mounting kit for RCS radial master cylinder. Can be used with any master cylinder that has a vertical split where the clamp mounts the master cylinder to the handlebar.

Brembo has always contributed to the victories of the world’s greatest champions with braking systems boasting constantly evolving technology and innovation. With its unmatched racing experience and collection of victories, Brembo is the undisputed benchmark for the champions of the world’s most prestigious championships and the most discerning motorcyclists.

By meticulously selecting the materials used, Brembo can achieve ever higher standards in terms of technology and quality, which translate to superlative performance and outstanding reliability and safety. The technological innovations developed and implemented in the world’s major motorcycle championships are continuously transferred to the products of the High Performance range, which offer bike tuners technologically dedicated, highly advanced solutions.

The products of the High Performance range make the benefits of Brembo’s extraordinary wealth of technical expertise available to owners who want to enhance the character and performance of their motorcycles with track-proven components.

It is hugely important that the Brake Reservoir Kit perfectly fits the RCS range of master brake cylinder and smoothly provides brave fluid to the cylinder.

Brembo Reservoir Mounting Kit Includes:

1 complete fluid tank reservoir (45 ml).
1 rubber vibration-isolating bushing for reservoirs.
1 master cylinder bracket.
1 machined bolt with washer and nut for reservoir.
1 6″ long reservoir tube.
2 reservoir tubing clamps.
2 standoff washers.
1 master cylinder bolt.



Additional information

Weight 5.0 lbs
Color

,

Brembo RCS15 Mastercylinder

No, Yes $290.00

Titanium Caliper Bolts (2)

No, Yes $29.99

Brembo Reservoir Mounting Kit

No, Yes $69.99
