Kawasaki ZX4r/ZX4rr Titanium Caliper Bolts (Race drilled Head)M10x(1.25mm)x80mm (For Oversized Rotors)

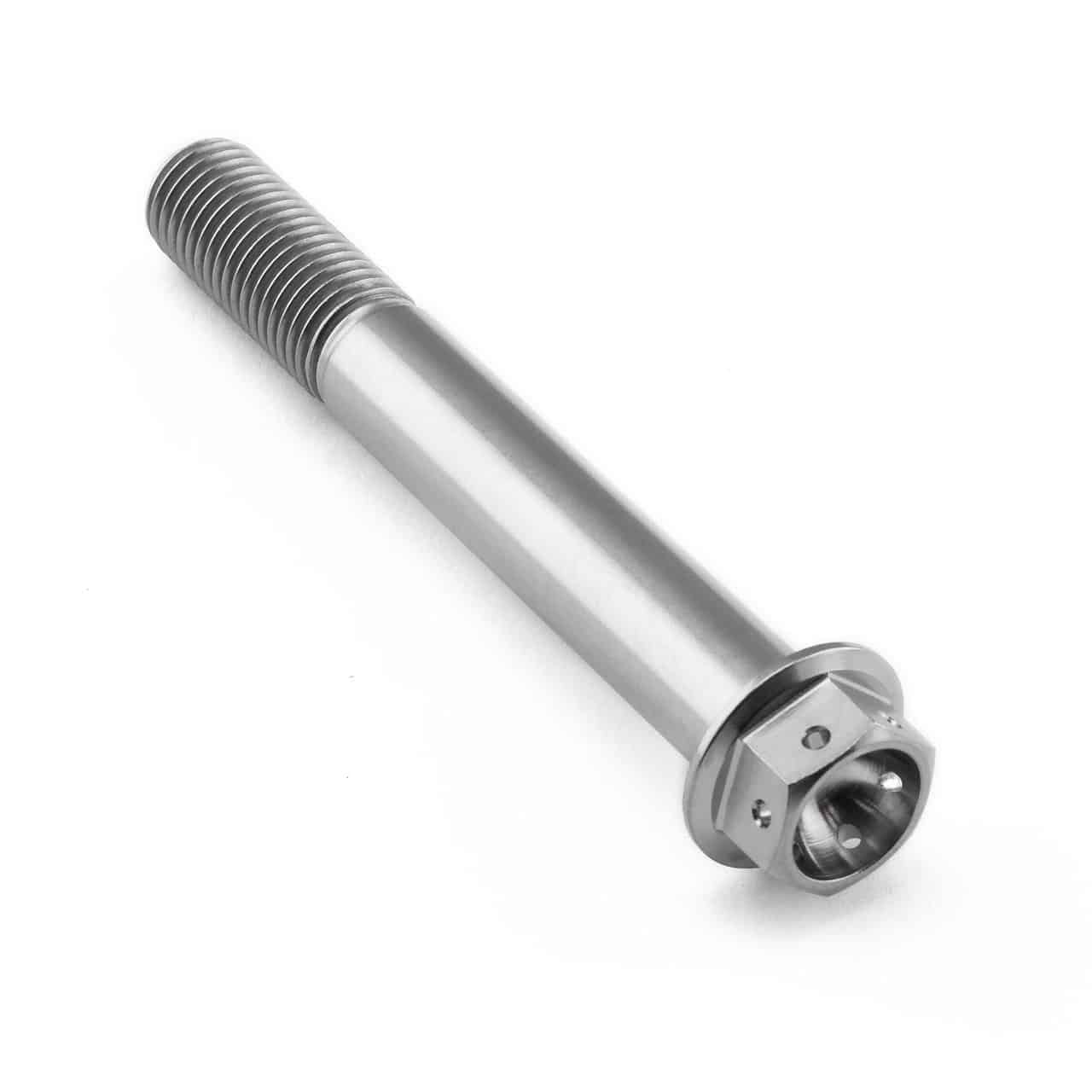

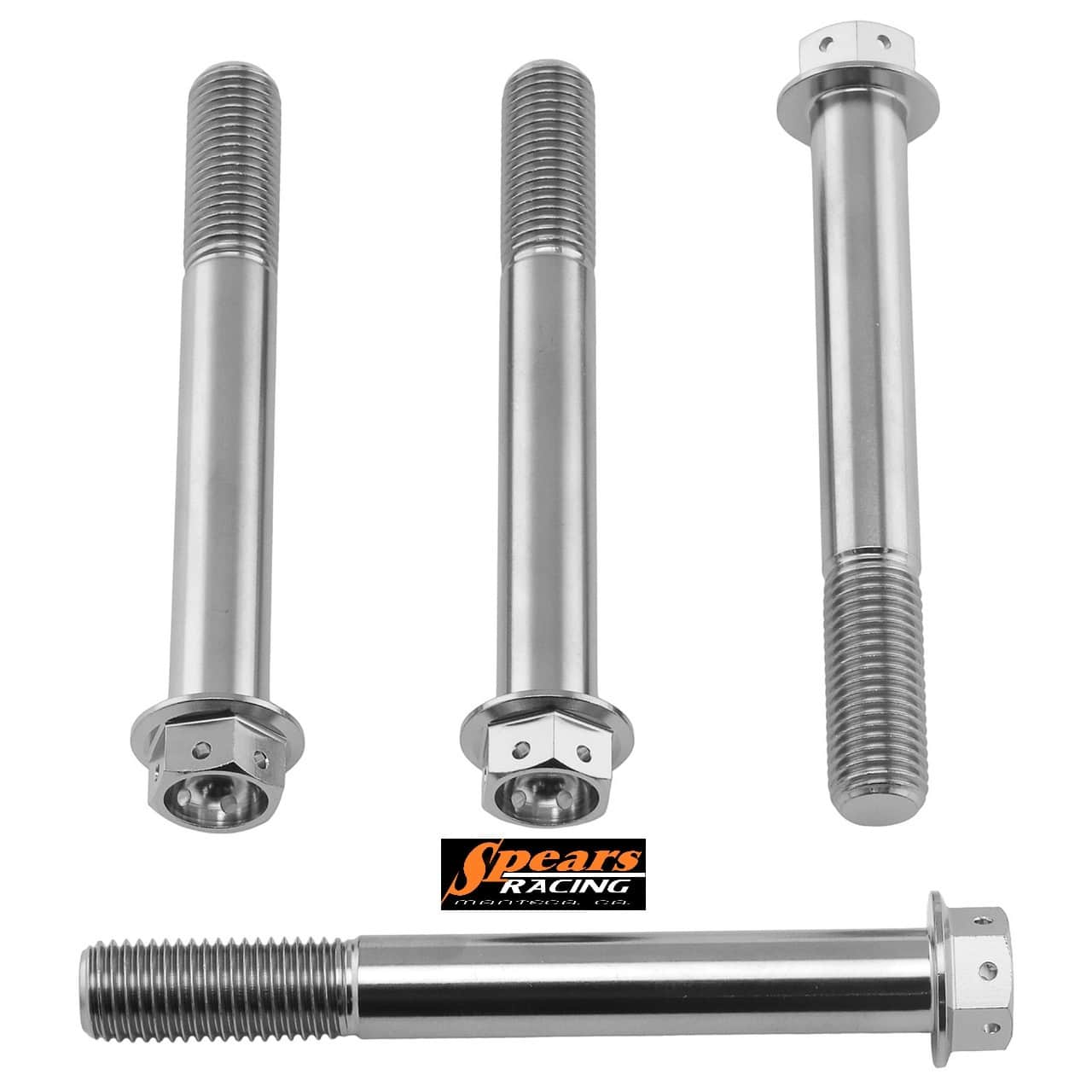

Titanium Flanged Hex Head Bolt – M10 x 1.25 x 80mm (Race Drilled)

Kawasaki ZX4r/ZX4rr Titanium Caliper Bolts (Race drilled Head)M10x(1.25mm)x80mm (For Oversized Rotors)

  • Forged body + rolled threads – Maximizes structural integrity and fatigue life under repeated high-load cycles
  • Pre-drilled head for lockwire – Factory race-drilled for safety-critical applications (brake calipers, suspension, etc.)
  • Integrated flange – Eliminates the need for separate washers and provides even load distribution



Sold ea.

Original price was: $29.99.Current price is: $24.99.

20 in stock

SKU Titanium Flanged Hex Caliper Bolts (Race drilled Head) Categories , , ,

Description

Spears Racing Kawasaki ZX4r/ZX4rr Titanium Caliper Bolts – M10 x 1.25 x 80mm (Race Drilled)Engineered for the most demanding high-performance environments, this Spears Racing Titanium Flanged Hex Head Bolt delivers the perfect balance of extreme strength, significant weight savings, and total reliability. Premium Aerospace Grade Titanium (6Al-4V Grade 5)
Manufactured from the same titanium alloy used in aircraft and Formula 1 components, these bolts offer outstanding tensile strength, fatigue resistance, and complete corrosion immunity — even in the harshest racing conditions.

Key Features

  • Forged body + rolled threads – Maximizes structural integrity and fatigue life under repeated high-load cycles
  • Pre-drilled head for lockwire – Factory race-drilled for safety-critical applications (brake calipers, suspension, etc.)
  • Integrated flange – Eliminates the need for separate washers and provides even load distribution
  • Ultra-lightweight – Only 30 g per bolt, saving vital grams where every gram counts

Ideal for

  • Brake caliper mounting
  • High-performance suspension
  • Motorsport chassis and engine components
  • Any application where strength-to-weight ratio and corrosion resistance are critical

Product Specifications

Specification
Value
Material
Titanium Grade 5 (6Al-4V)
Product Type
Flanged Hex Head Bolt
Head Style
Flanged Hex (Race Drilled)
Thread Diameter
10.00 mm
Thread Pitch
1.25 mm
Thread Length
26.00 mm
Shank Length
54.00 mm
Overall Length
80.00 mm
Head Height
7.35 mm
Socket Size
12 mm
Pre-Drilled for Lockwire
Yes
Weight
29.0 g Ea.
Pack Quantity
1
Note: Ready to shave weight and upgrade performance?

Additional information

Weight .5 lbs
