BREMBO BRAKE FULL FLOATING DISC/ROTOR SUPERSPORT 290m x 5m Kawasaki Ninja EX300

Description

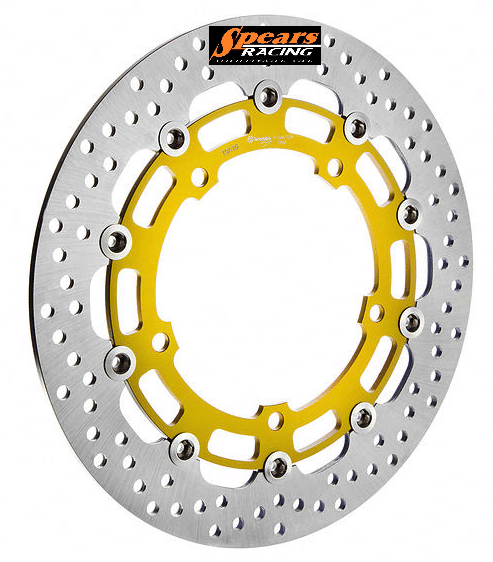

Brembo Brake Rotor 08A64231  SUPERSPORT

BREMBO BRAKE DISC SUPERSPORT 290m Diameter /4.5-mm thick  Kawasaki Ninja 300cc  Brembo Brake Rotor  08A64231 (this is a OEM replace size diameter)

During braking the Brembo Brake Rotor   has to dissipate the kinetic energy of the motorcycle which is normally turned into heat by the friction between the pads and the disc itself.

Therefore, the latter is affected by a thermomechanical force (heat + force) that the disc naturally holds out without getting deformed. Every disc has its own inertia (i.e. the tendency of a body not to modify its motion status) which depends on the weight and the external diameter and affects the speed when shifting directions.

A new disc project must take all these points into consideration and the best performance is achieved when the disc is lighter and more resistant.

SUPERSPORT DISC

BREMBO RACING SUPERSPORT 4.5-mm discs are fully interchangeable with the original discs and they are designed to fit to the OE calipers as well as with BREMBO Racing. These are floating discs made up of a brake rotor in thermically-treated martensitic stainless steel (capable to stand any thermomechanical strain) and of an CNC alloy-aluminum bell. These two parts are connected to each other using 10 bushings. The combination of these discs with Brembo Z04 pads won the 2009 World SuperSport Championship title.

Brembo World Supersport winning kits for the street:These fully homologated for the street rotors have performed at the highest level in World Supersport and dominated the class outperforming any other competitors rotors on many occasions. High Carbon stainless steel.

What is a Full Floating Rotor

Technical Characteristics
– 290 mm diameter
– 130 mm inner diameter
– 150 mm holes axis
– 5 holes, 10.2 mm
– Brake disc thickness 5.0 mm
– Brake ring inox, Racing Material
– Brake inner part made of special aluminum, gold
– Floating storage with 12 steel-floater
– used by Kawasaki 300 Ninja 2013-, front
