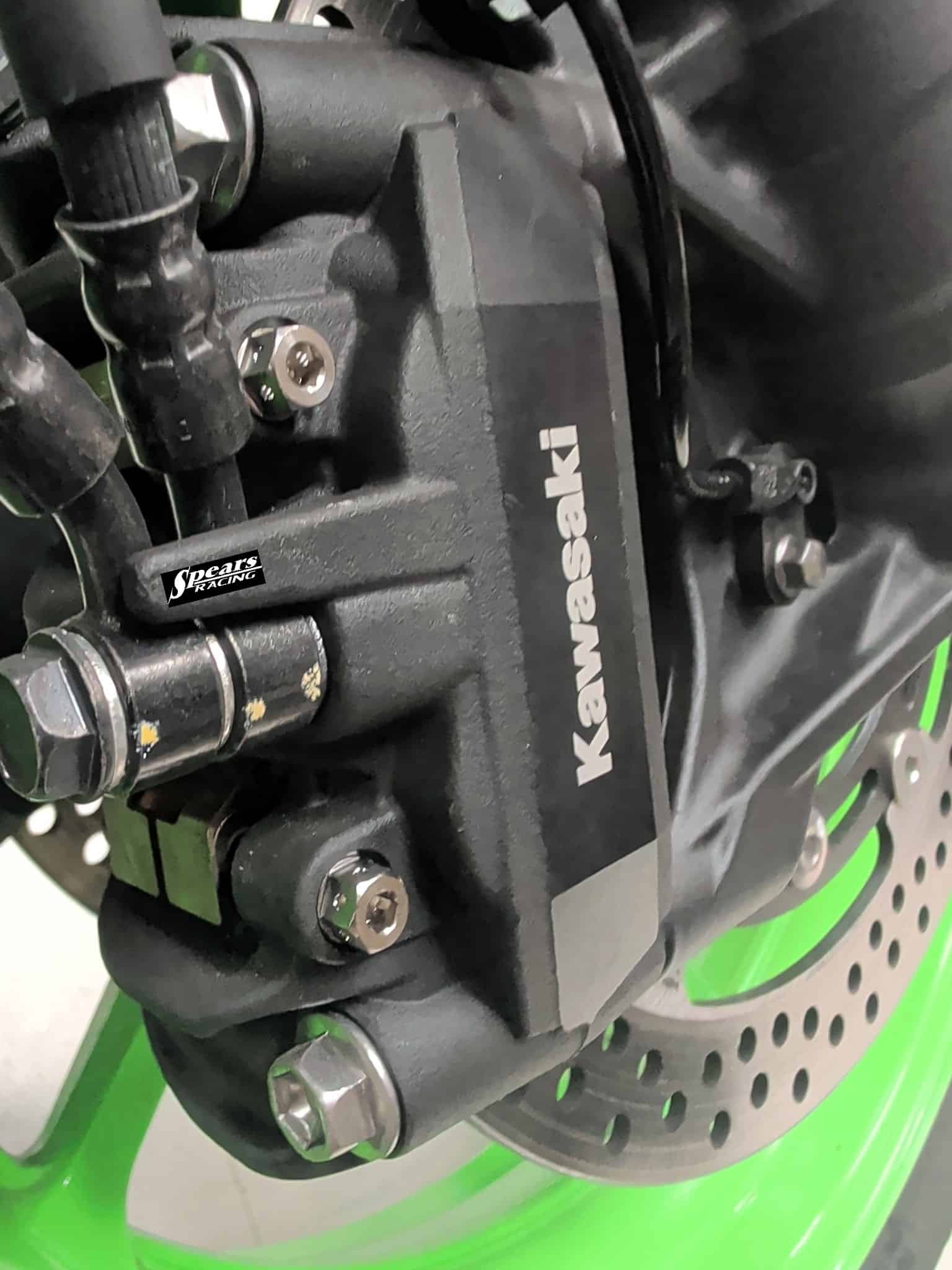

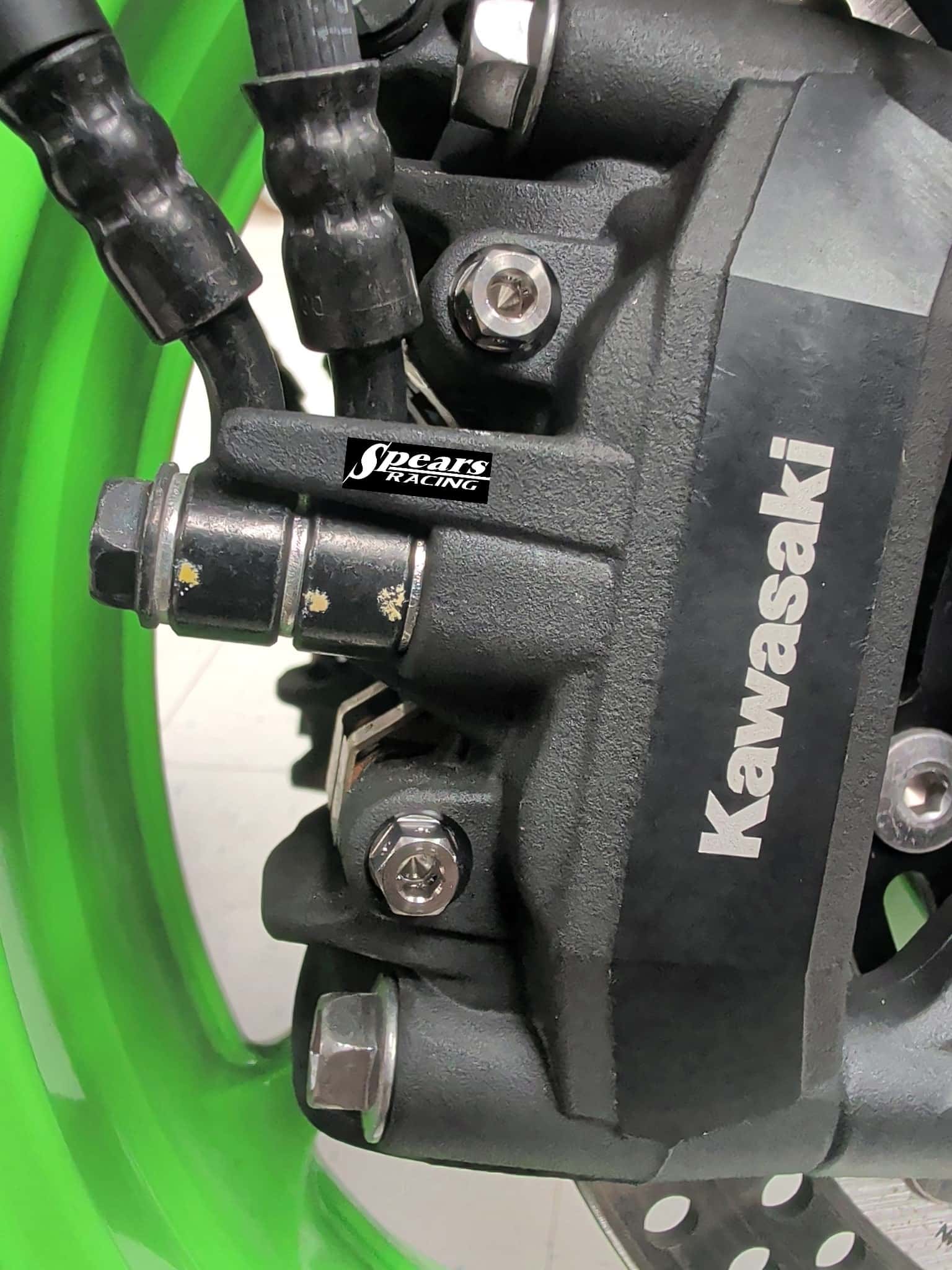

Titanium Brake Caliper Pad Pin Kawasaki ZX4r/ZX4rr M10x(1.00mm) Race Spec Pack x4
Titanium Brake Caliper Pad Pin Kawasaki ZX4r/ZX4rr M10x(1.00mm) Race Spec Pack x4 - Image 2
Titanium Brake Caliper Pad Pin Kawasaki ZX4r/ZX4rr M10x(1.00mm) Race Spec Pack x4 - Image 3
Titanium Brake Caliper Pad Pin Kawasaki ZX4r/ZX4rr M10x(1.00mm) Race Spec Pack x4 - Image 4

Titanium Brake Caliper Pad Pin Kawasaki ZX4r/ZX4rr M10x(1.00mm) Race Spec Pack x4

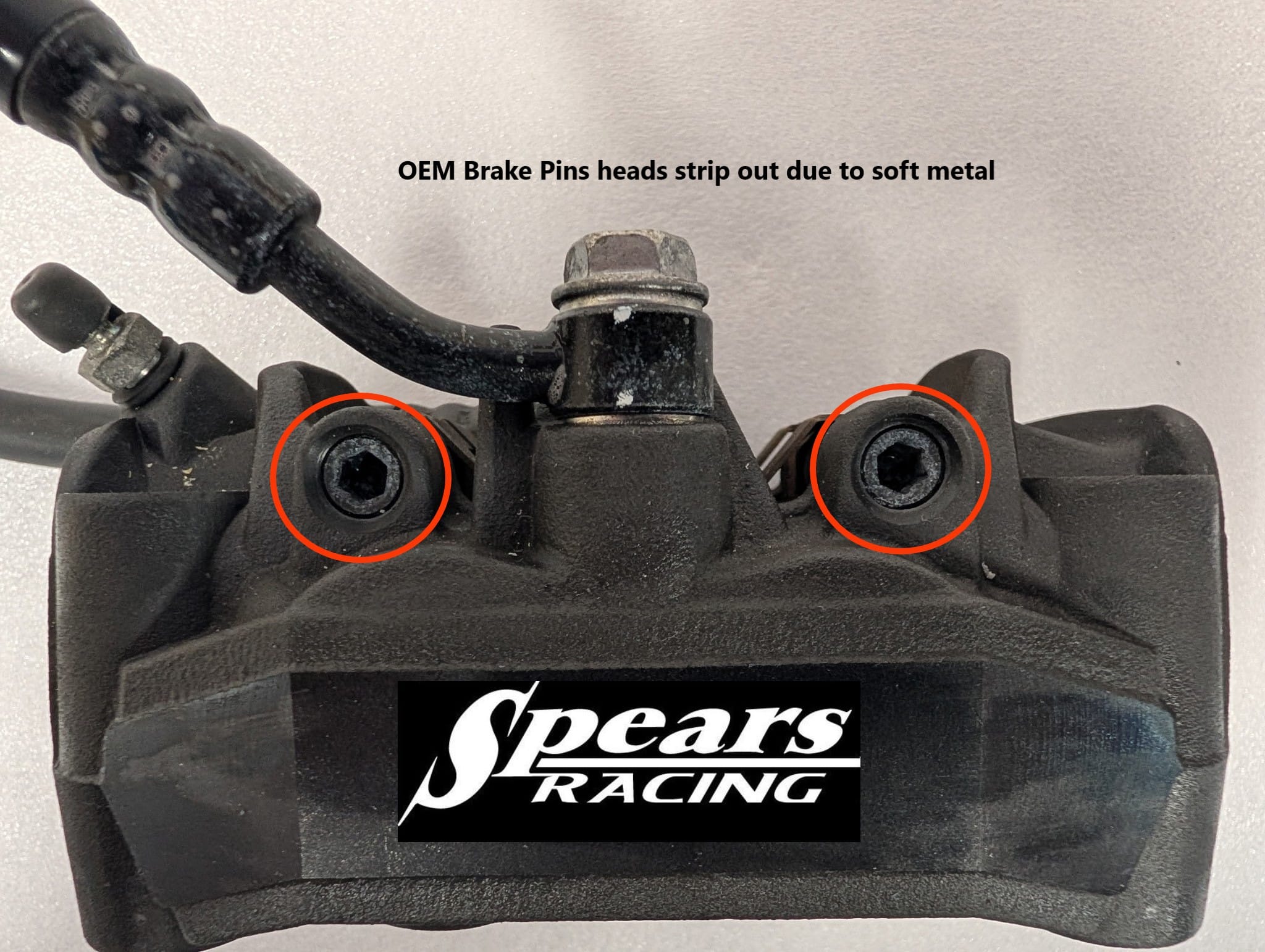

  • The issue of removing the OEM soft steel brake pin with the 5mm Allen tool with steady pressure of the tool, the inner part of the bolt rounds off /strips and you have to drill the bolt out, or in most cases you just replace the brake caliper.

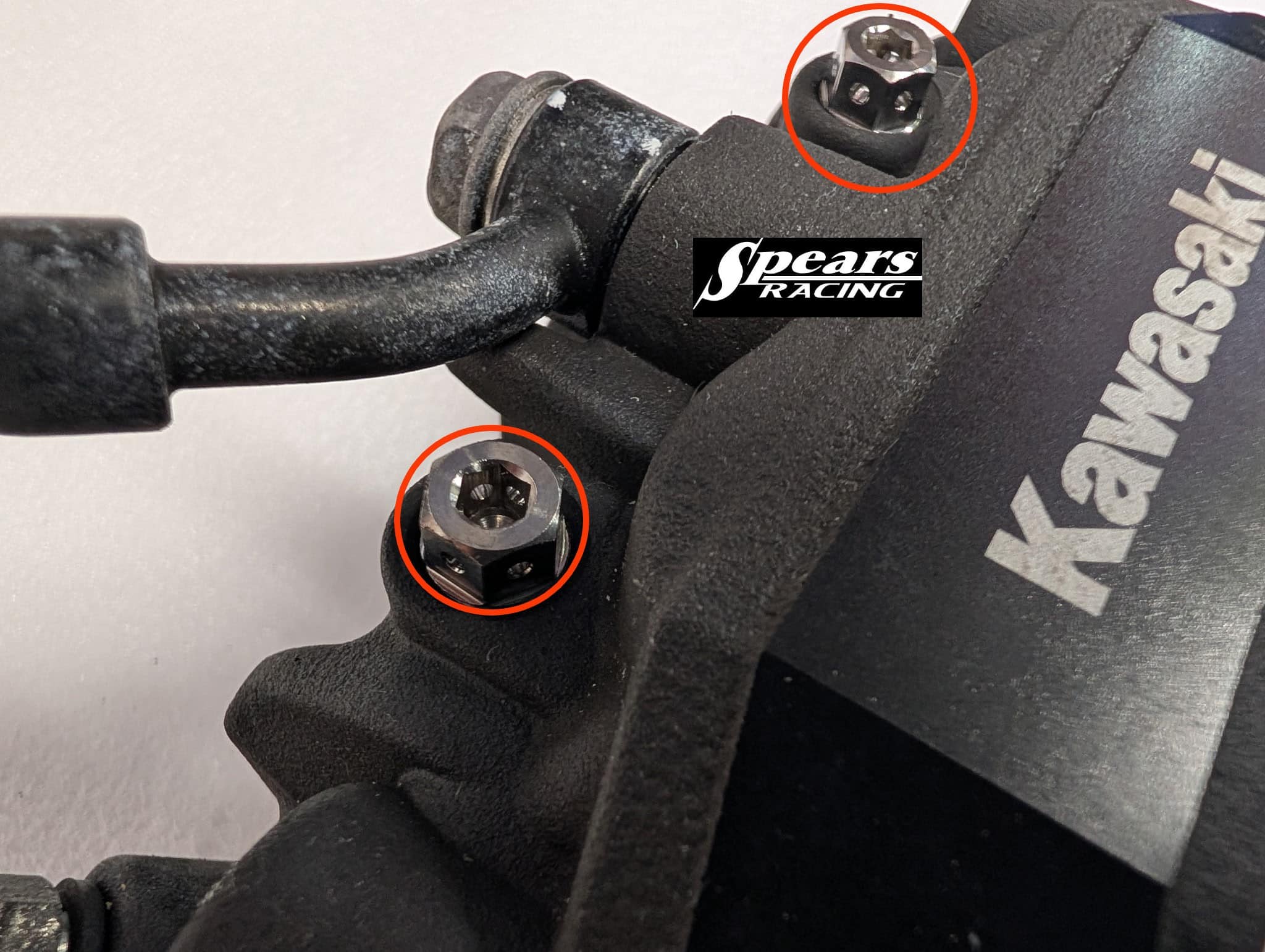

    The Spears Titanium brake pin caliper bolt has two ways to remove the bolt, designed to accept an 8mm socket or a 4mm Allen tool, the biggest advantage for street or racing is the 6ea x 1.5 drilled holes for safety wire’
  • Forged body + rolled threads – Maximizes structural integrity and fatigue life under repeated high-load cycles
  • Pre-drilled head for lockwire – Factory race-drilled for safety-critical applications (brake calipers, suspension, etc.)
  • Integrated flange – Eliminates the need for separate washers and provides even load distribution



Sold in set of four (4ea)

Original price was: $85.00.Current price is: $79.99.

70 in stock

SKU Kawasaki ZX4r/ZX4rr Brake Pin Titanium Race Spec M10x1.00mm (Set of 4ea) Categories , , ,

Description

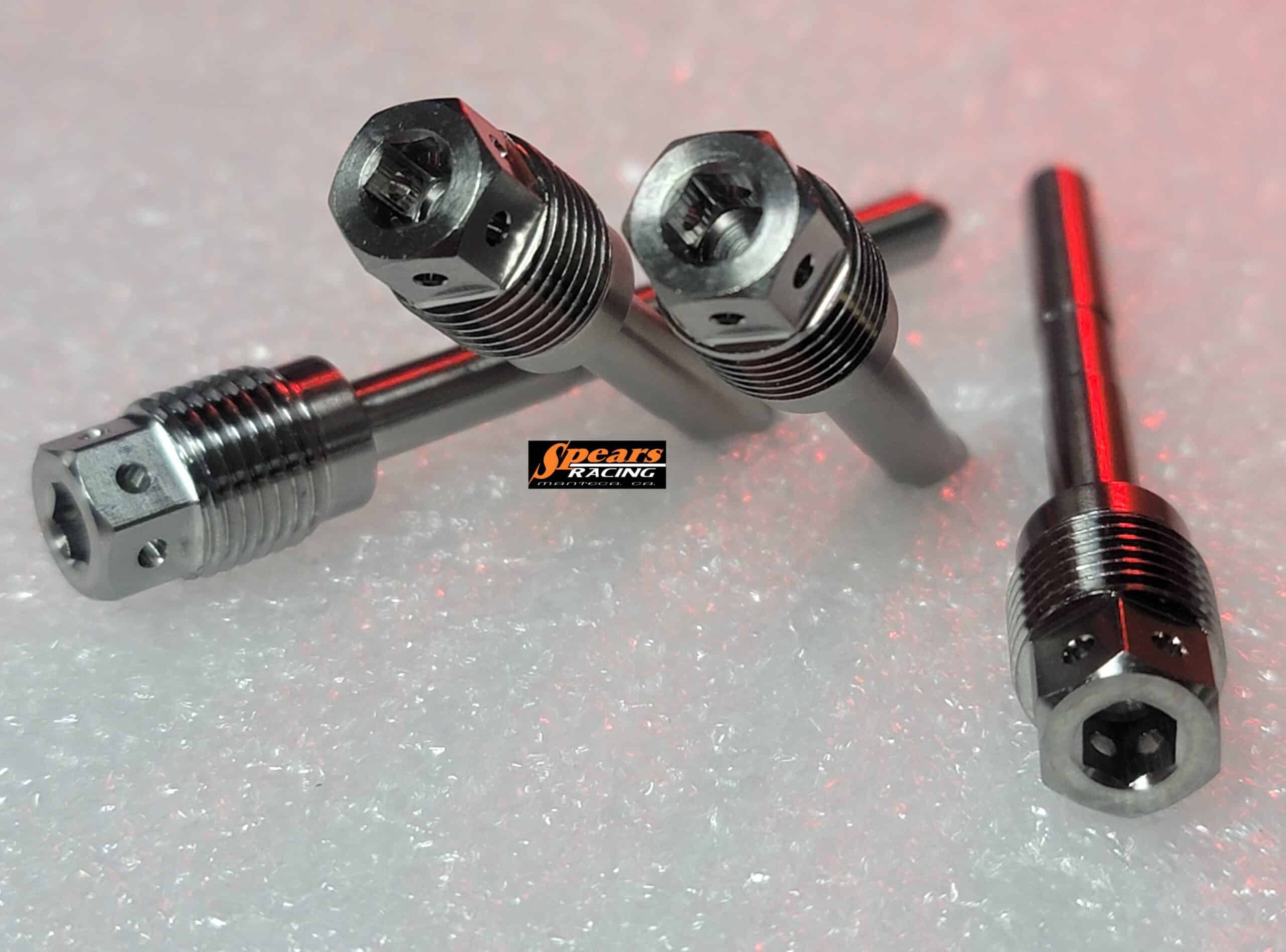

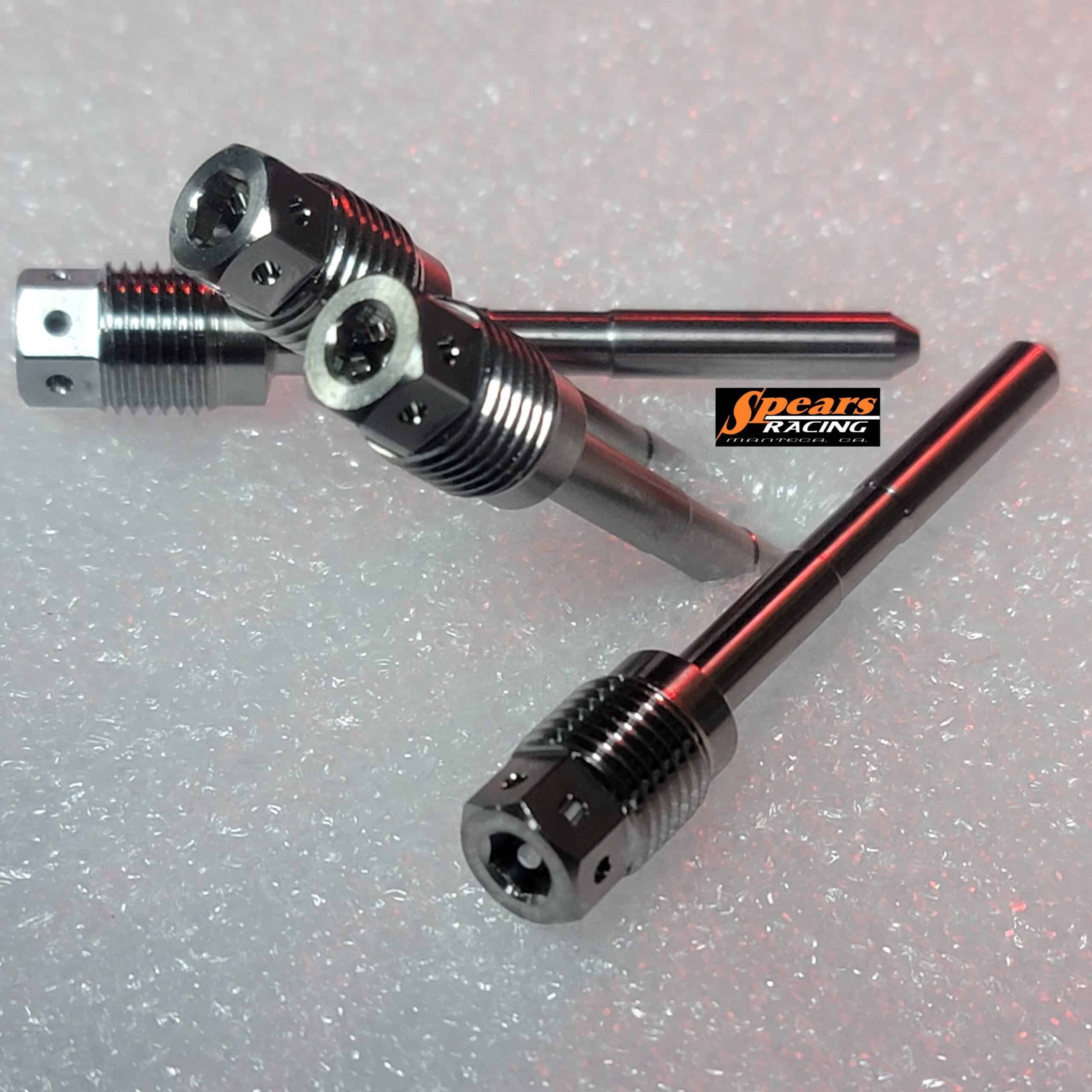

Spears Racing Kawasaki ZX4r/ZX4rr Brake Pin Titanium Race Spec M10x1.00mm (Race Drilled) Engineered for the most demanding high-performance environments, this Spears Racing Titanium brake caliper pad pin delivers the perfect balance of extreme strength, significant weight savings, and total reliability. Premium Aerospace Grade Titanium (6Al-4V Grade 5)

Manufactured from the same titanium alloy used in aircraft and Formula 1 components, these bolts offer outstanding tensile strength, fatigue resistance, and complete corrosion immunity — even in the harshest racing conditions.
The issue of removing the OEM soft steel brake pin with the 4mm Allen tool the steady pressure of the tool, the inner part of the bolt rounds off /strips and you have to drill the bolt out, or in most cases you just replace the brake caliper.
The Spears Titanium brake pin caliper bolt has two ways to remove the bolt, designed to accept an 8mm socket or a 4mm Allen tool, the biggest advantage for street or racing is the 6ea x 1.5 drilled holes for safety wire

Kawasaki ZX4r/ZX4rr Brake Pin Titanium Race Spec Key Features

  • Forged body + rolled threads – Maximizes structural integrity and fatigue life under repeated high-load cycles
  • Pre-drilled head for Safety wire – Factory race-drilled for safety-critical applications (brake calipers, suspension, etc.)
  • Integrated flange – Eliminates the need for separate washers and provides even load distribution
  • Ultra-lightweight – Only 7 g per bolt, saving vital grams where every gram counts

Ideal for

  • Brake caliper mounting
  • High-performance suspension
  • Motorsport chassis and engine components
  • Any application where strength-to-weight ratio and corrosion resistance are critical



Product Specifications
Material Titanium Grade 5
Product Type Brake / Caliper
Thread Diameter 10.00mm
Thread Pitch 1.00mm
Thread Length 7.50mm
Shank Length 43.00mm
Head Height 5.00mm
Length 58.50mm
Socket Size 8.00mm
Allen Key Size 4.00mm
Pre-Drilled Yes x 6ea 1.5mm
Product Weight 28.00g per set
Pack Quantity 4

Fits the following Motorcycles:



KAWASAKI ZX-6R Ninja (ZX636) (B1 – C6F/D6F) 2003-2006 KAWASAKI ZX-6RR Ninja (ZX600) (K1 – N6F) 600 2003-2006 KAWASAKI Z1000 ABS (ZR1000) 1000 2010-and up KAWASAKI Z1000 non-ABS (ZR1000) (DAF – )1000 2010-and up KAWASAKI Z1000SX ABS (ZR1000) (DBFA – ) 1000 2011-and up KAWASAKI Z1000SX non-ABS (ZR1000) (DBF – ) 1000 2011-and up KAWASAKI ZX-10R Ninja ABS (ZX1000) (KBF – KFF(A)) 2011-2015 KAWASAKI ZX-10R Ninja non-ABS (ZX1000) (C1 – FAF) 2004-2010 KAWASAKI ZX-10R Ninja non-ABS (ZX1000) (JBF – JFF(A)) 11-15 KAWASAKI ZX-12R Ninja (ZX1200) (B3 – B7F) 1200 2004-2007 KAWASAKI Vulcan 1600 St 2003 250 SXS – Brake Caliper Rear Brembo 2003 450 SX RACING – Brake Caliper Rear Brembo 26Mm 2003 450 SXS RACING – Brake Caliper Rear Brembo 26Mm 2003 540 SXS RACING – Brake Caliper Rear Brembo 26Mm 2004 125 SX – Brake Caliper Rear Brembo 26Mm 2004 125 SXS – Brake Caliper Rear Brembo 26Mm 2004 200 EXC (AU) – Brake Caliper Rear Brembo 26Mm 2004 200 EXC (US) – Brake Caliper Rear Brembo 26Mm 2004 200 SX – Brake Caliper Rear Brembo 26Mm

SUZUKI GSX R600 (K4 – K5) 600 2004-2005 SUZUKI GSX R750 (K4 – K5) 750 2004-2005 SUZUKI GSX R1000 non-ABS (K3 – K4) 1000 2003-2004



Note: Ready to shave weight and upgrade performance?

Additional information

Weight 1.0 lbs
